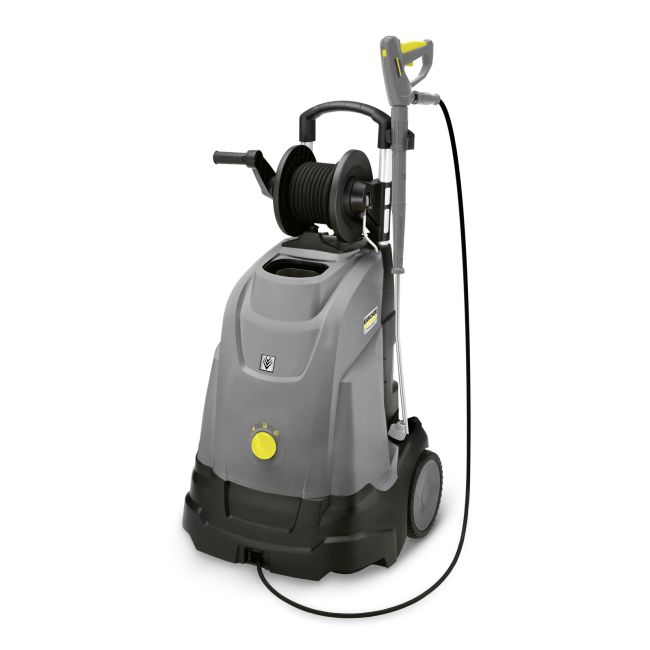

Karcher Pressure Washer, HDS 5/11 UX

Entry-level, highly portable hot water pressure cleaner with integrated hose reel.

The HDS 5/11 U is a compact hot water pressure washer which features a 3-piston axial pump, air-cooled 2-pole electric motor and a 15m hose with integrated hose reel. The machine allows for easy transportation and storage thanks to its low weight, compact upright design and large diameter wheels, and is small enough to be transported in a typical estate car. . With simple OFF-COLD-HOT operation, the 5/11 U is the perfect machine for light-medium duty cleaning tasks where time is of the essence.

Features & Benefits

• Integrated hose reel - Convenient, secure pressure hose storage. Ensures ergonomic operation. Reduced set-up times.
• Fine-mesh water filter - Efficiently protects high-pressure pump against contamination. Easy to remove from outside.

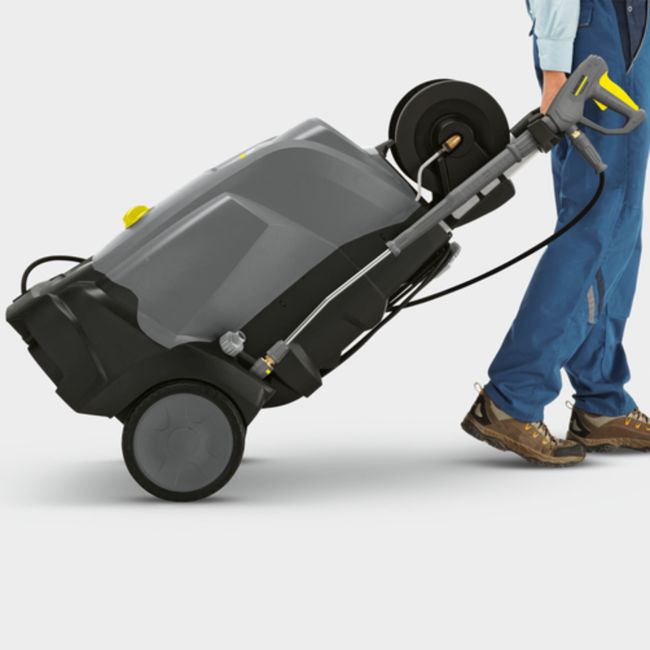

• Innovative upright design - Effortless transport over landings or stairs. Large wheels for unpaved surfaces.

Application Areas

• Vehicle cleaning
• Device and machine cleaning
• Workshop cleaning
• Cleaning outdoor spaces
• Service station cleaning
• Façade cleaning
• Swimming pool cleaning
• Cleaning of sports facilities
• Cleaning during production processes
• Cleaning of production facilities

Equipment

• Trigger gun: EASY!Force Advanced
• High-pressure hose length: 15 m
• Spray lance: 840 mm
• Integral high-pressure hose reel
• Pressure switch control

Technical data

• Current type (Ph/V/Hz) - 1 / 230 - 240 / 50
• Flow Rate (l/h) - 450
• Operating pressure (bar/MPa) - 110 / 11
• Temperature (°C) - max. 80
• Power rating (kW) - 2.2
• Consumption fuel oil (kg/h) - 2.4
• Fuel Tank (l) - 6.5
• Colour - anthracite
• Weight (with accessories) (kg) - 67.4
• Weight incl. packaging (kg) - 76.6
• Dimensions (L × W × H) (mm) - 618 x 1163 x 994
