Karcher Pressure Washer, HD 9/20-4 SXA Plus

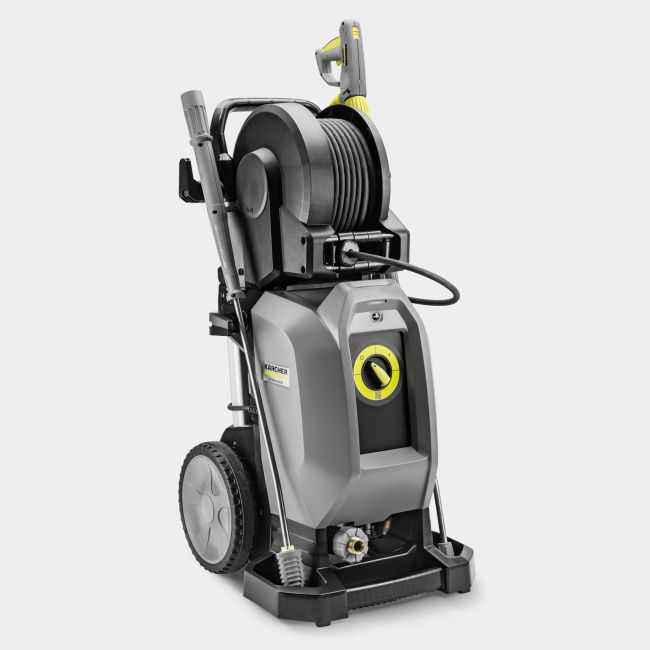

The HD 9/20-4 SXA Plus cold water high-pressure cleaner. Made with premium quality materials and featuring an automatic hose reel and Vibrasoft rotary nozzle for performance and comfort.

The HD 9/20-4 SXA Plus cold water high-pressure cleaner delivers impressive ergonomics and premium quality. Effortless operation thanks to the EASY!Force Advanced high pressure gun with no holding force. Pressure and water volume adjusted via the Servo Control controller. The Vibrasoft rotary nozzle reduces vibrations and noise by up to 30 per cent. Assistance systems and an LED status display provide clear information. Excellent workmanship and the very best materials make this Super Class machine stand out from the crowd. The vertically mounted motor and pump unit, comprising a hard-wearing wobble pump with stainless steel pistons and a brass cylinder head, keeps the construction compact for maximum portability. Complete with a powerful 4-pole low-speed motor with air-water cooling system. Aluminium frame carriers form a lightweight yet robust chassis, suitable for crane loading. Includes ultra-guard high-pressure hose with robust Teflon® coating and an automatic hose reel capable of winding and unwinding even under pressure and at an angle of up to 45 °, for up to 50 per cent quicker set-up times.

Features & Benefits

• Automatic hose reel - Automatic winding and unwinding up to an angle of 45 °, even under pressure. Scratch-resistant and smooth Ultra Guard HD hose with Teflon® coating. Set-up times up to twice as fast.
• Compact upright design concept based on vertical arrangement of motor and pump unit - Small footprint and space-saving proportions. Easy to manoeuvre and transport. Maximum stability ensures a stable footing for the machine.
• 4-pole low-speed motor with air-water cooling system, robust pump with stainless steel pistons and brass cylinder head - Long service life and low maintenance costs. High performance and efficiency. With suction feature and up to 60 °C water temperature.

Application Areas

• Cleaning tractors, machines and implements in agriculture
• Cleaning machines and equipment on the building site, such as cement mixers, scaffolding, wheel loaders, diggers or concrete pumps
• Cleaning production machinery in industry, such as in paint shops, in food production or in the manufacturing sector
• Cleaning vehicles in transport sector, such as trucks, ships, aeroplanes or buses
• Cleaning communal spaces such as public squares, driveways, fountains or car parks

Equipment

• Trigger gun: EASY!Force Advanced
• Trigger gun with soft grip
• High-pressure hose length: 20 m
• High-pressure hose type: Ultra Guard
• High-pressure hose specification: ID 8, 315 bar
• Spray lance: 1050 mm
• Power nozzle
• Dirt Blaster spray lance
• Servo Control
• 4-pole three-phase motor with air and water cooling
• Three piston axial pump: with stainless steel pistons
• Pressure switch control
• Integrated fine mesh water filter
• Oil sight glass
• Brass water inlet fitting

Technical data

• Current type (Ph/V/Hz) - 3 / 376 - 424 / 50
• Flow Rate (l/h) - 500 - 900
• Water feed temperature (°C) - 60
• Operating pressure (bar) - 50 - 200
• Max. Pressure (bar) - 250
• Power rating (kW) - 7
• Power cable (m) - 5
• Nozzle size - 047
• Water inlet - 1"
• Colour - anthracite
• Weight (with accessories) (kg) - 74.5
• Weight incl. packaging (kg) - 82.8
• Dimensions (L × W × H) (mm) - 607 x 518 x 1063
