Karcher Pressure Washer, HD 7/12-4 M Plus ST, 240v

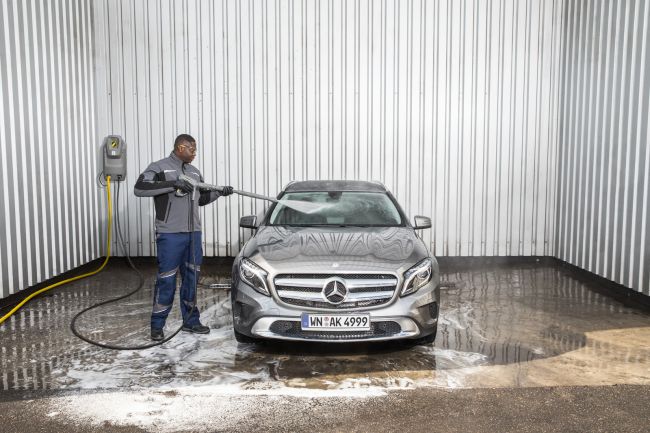

A stand-alone pump unit for simple stationary and space-saving wall-mounted operation. A 3-point support on the back enables vertical or horizontal mounting.

The stand-alone pump unit out of the HD Middle class is the perfect solution for integrated high-pressure pumps e.g. stationary machine and production progress. A reliable high-pressure pump which is protected by a robust plastic chassis and not more. The machine is intended for stationary use and can be mounted and operated both horizontally and vertically. A 3-point support on the back enables vertical or horizontal mounting. Access to the high-pressure pump and the electronic components is easy and therefore service-friendly – the pump itself is effectively protected from dirt in reclaim water by means of a large water fine filter.

Features & Benefits

• High-quality equipment - Automatic pressure relief for protecting the components extends their service life. Powerful, 4-pole slow-running electric motor. High-quality brass cylinder head.
• Flexible operation - Designed for upright and horizontal operation. Maximum stability in horizontal operation as the wheels do not touch the ground.
• Outstanding mobility - Push handle can be retracted at the push of a button, thus increasing the compactness of the machine and reducing the space requirement. Effortless storage in service vehicles. Integrated storage options reduce the set-up times.

Equipment

• Pressure switch control

Technical data

• Current type (Ph/V/Hz) - 1 / 240 / 50
• Flow Rate (l/h) - 700
• Water feed temperature (°C) - 60
• Operating pressure (bar/MPa) - 120 / 12
• Max. Pressure (bar/MPa) - 180 / 18
• Power rating (kW) - 3.1
• Power cable (m) - 5
• Water feed - 3/4"
• Colour - anthracite
• Weight (with accessories) (kg) - 30.5
• Weight incl. packaging (kg) - 33
• Dimensions (L × W × H) (mm) - 290 x 300 x 565
